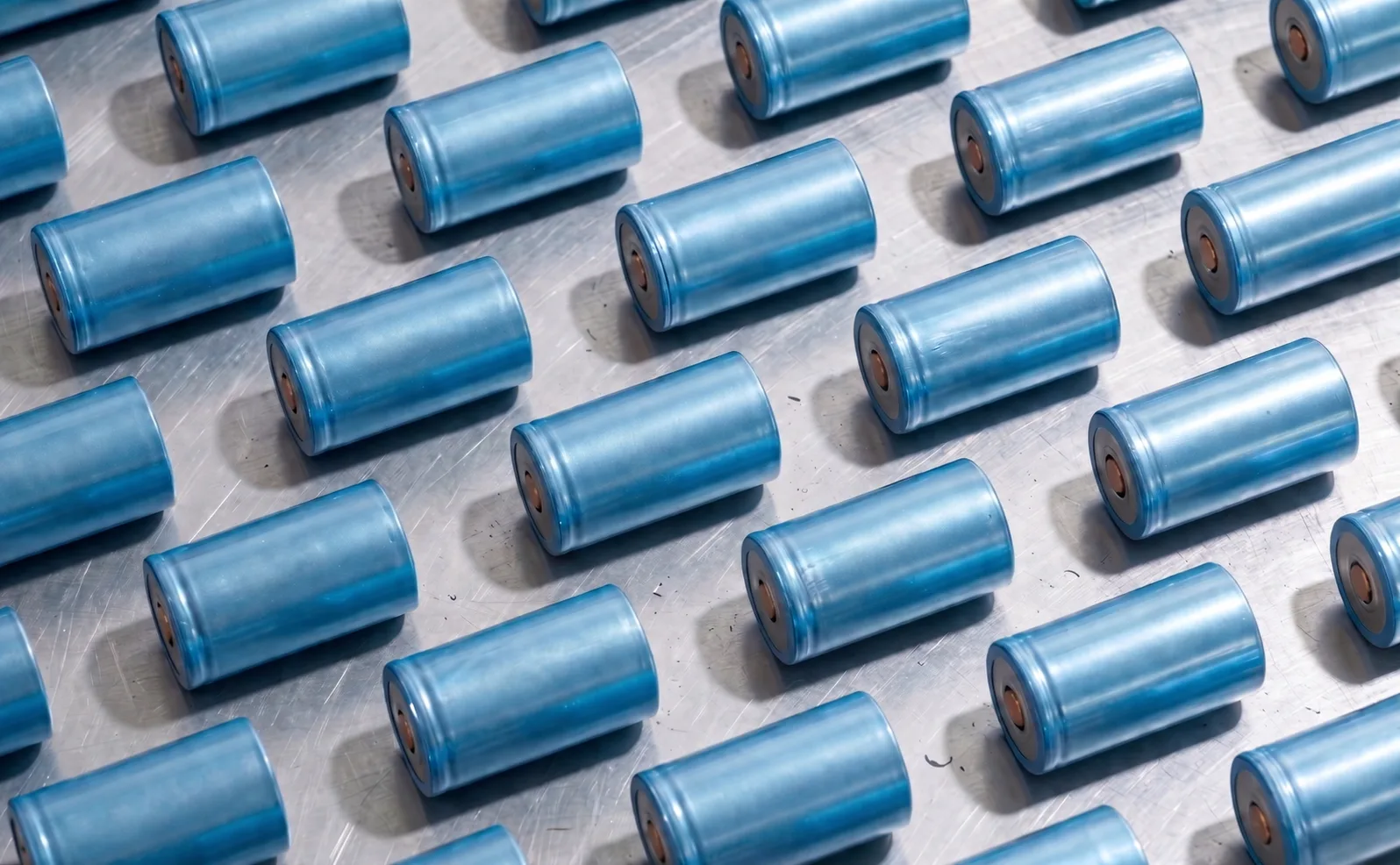

The 4680 cylindrical cell represents one of the most important directions in electric vehicle battery design. By increasing cell size, reducing inactive materials, simplifying pack architecture, and improving manufacturing efficiency, it offers a path toward higher energy density and lower cost.
This direction is right. Larger cylindrical formats such as 4680 and 4695 are part of the natural evolution of lithium-ion batteries. But scaling a cell is not only a matter of making it bigger. As cells increase in size, the physics inside them changes. The jelly roll becomes longer, transport paths become more complex, heat becomes harder to dissipate, and internal imbalances grow.
The 4680 is not limited by lack of ambition. It is limited by the internal architecture required to support that ambition.
For decades, battery development has been driven mainly by chemistry: better active materials, improved electrolytes, new additives, and optimized formulations. This will continue, but in large-format cylindrical cells, chemistry is no longer the only constraint. Geometry becomes a limiting factor.

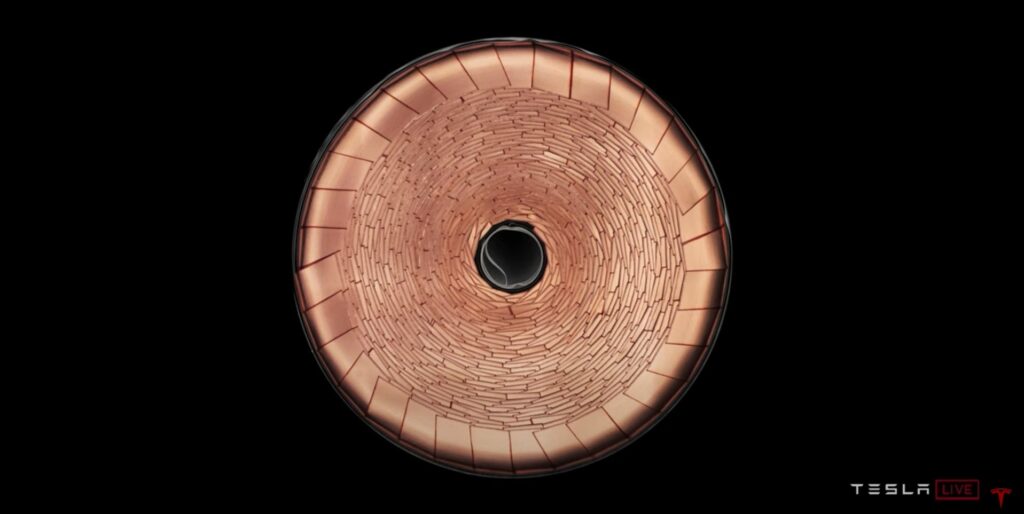

Inside every cylindrical cell, the electrodes are wound into a jelly roll. This structure is compact and manufacturable, but it creates an inherent asymmetry. The inner layers experience tighter curvature than the outer layers, changing the local balance between the anode and cathode. This directly affects the N/P ratio, which defines the balance between negative and positive electrode capacity.
On the inner side of the jelly roll, the effective N/P ratio can drop, increasing the risk of lithium plating and degradation. In smaller cells, this effect is easier to manage. In large formats, where the jelly roll is far longer, it becomes a structural limitation.
The industry response is practical, but inefficient. To maintain a safe N/P ratio across the entire cell, manufacturers often add anode overhang or extra anode capacity to compensate for the most constrained regions of the jelly roll. This is not just a material adjustment. It is a structural tax. The additional anode is applied across the full electrode length, even though the underlying limitation is concentrated in specific regions of the cell. This increases material consumption, adds cost, reduces energy density, and introduces unnecessary weight. At the scale of millions of vehicles, this becomes a fleet-level efficiency loss.
This also connects directly to the long-term energy-density roadmap for large cylindrical cells. Recent claims suggest the 4680’s current usable energy density may be around 260 Wh/kg, with a potential trajectory toward 340 Wh/kg as anode and cathode improvements accumulate. But part of that opportunity may also be structural, reducing excess anode capacity and enabling a smaller mandrel, without paying the same curvature penalty.
Another mitigation strategy is to increase the mandrel diameter, reducing curvature in the inner part of the jelly roll. But this also reduces active volume inside the cell. In both cases, the industry is not eliminating the problem. It is managing it through compromise.
The same pattern appears in ion transport and thermal behavior. Large cylindrical cells require ions to move efficiently through a longer and more complex internal structure. In reality, larger formats are more prone to electrolyte concentration gradients, especially across the vertical direction of the battery. When ion transport is not uniform, some regions become more stressed than others, contributing over time to lithium plating, degradation, and shorter cycle life.
Thermal performance creates another constraint. Larger cells have a lower surface-area-to-volume ratio, making heat harder to dissipate. Tabless design improved the electrical path and reduced current concentration around traditional tabs. But it does not solve every internal bottleneck. It improves how current exits the jelly roll, but not necessarily how uniformly current, ions, and heat move inside the electrode stack.
This is why the next stage of improvement must come from inside the electrode itself.
Traditionally, manufacturers have treated the current collector as a passive component that carries electrons, supports the electrode coating, and stays as thin and inexpensive as possible. For many years, that was enough. But in large-format cells, the current collector becomes one of the key architectural components that determines how the cell behaves.
This is the shift Addionics is focused on. By replacing traditional flat foil with a Smart Porous 3D Current Collector, the current collector becomes an active structural platform inside the battery. Instead of supporting transport only along the electrode plane, the porous 3D structure enables additional through-plane pathways, giving ions and electrons more ways to move inside the jelly roll.
This directly addresses the curvature imbalance in large cylindrical cells. Because the porous structure enables transport through the current collector, it helps balance the two sides of the anode and reduce the local N/P mismatch caused by curvature. It also improves electrolyte distribution, helping reduce concentration gradients that contribute to lithium plating and cycle life degradation. Thermally, lower electrode resistance generates less heat, while the porous metallic architecture improves internal heat distribution and reduces localized thermal stress.
The 4680 format is the right path. It is a necessary evolution, but it also exposes the limits of the previous architecture.
The next performance gains in 4680 and future cylindrical formats will not come only from adding material, changing chemistry, or optimizing external design. They will come from making the internal structure work harder – reducing hidden inefficiencies created by curvature, transport limitations, resistance, and thermal gradients.
The 4680 is not the limit. The limit is the architecture inside it.
